Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer

Basic Information
Place of Origin: Zhejiang, China
Brand Name: Refport
Model Number: DW-8625
Minimum Order Quantity: 1 piece
Price: $1,580.00/pieces 1-9 pieces
Detail Information
Type: Stirling Cooler Style: Single-Temperature
Capacity: 25L, 25L Temperature: 20~-86℃, +25C To -86C
Climate Type: N ST T Refrigerant: Helium (He), HE
Product Name: Portable ULT Freezer Brand: Refport
Voltage: 100V To 240V 12V/24V Cooling System: Stirling Cooling System
Weight: 17.5KG Certificate: CE/ISO9001
Warranty Time: 1 YEAR

Product Description

Specification
Model No.
PDW-86W25
Capacity
25L
Electric Power
12V DC to 24V DC/ AC 100~240V/50~60hz by Adapter
Maximum Power
100W (0.5A@220V,4.6A@24V)
Cooling Engine
Free-piston Stirling Engine
Refrigerant
Helium (He)
Temperature Range
25℃ to Minus 86℃
Performance Data
Ambient temperature is 25℃;Empty Cabinet

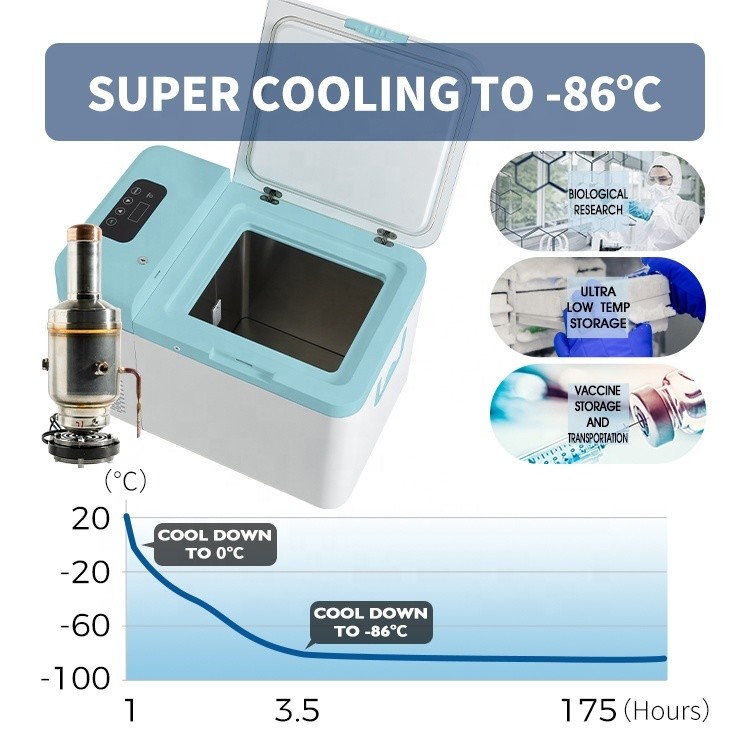

Take 3.5 hours from 25℃ to -80℃
Security
Lockable lid
Alarm System
Yes
Defrost Method
Manual
Certification
CE/EMC、CE/LVD、CQC
Interior Dimension (LxWxD)
300*250*300mm
Exterior Dimension(LxWxD)
616*392*455mm
N.W./G.W.
17.5KG/26KG
Shipping(LxWxD)
710*472*522mm

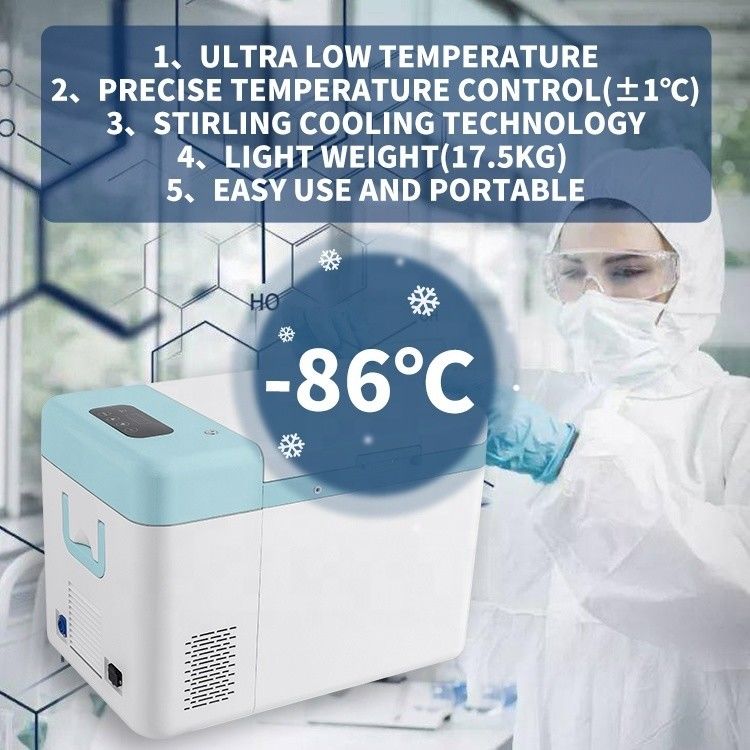

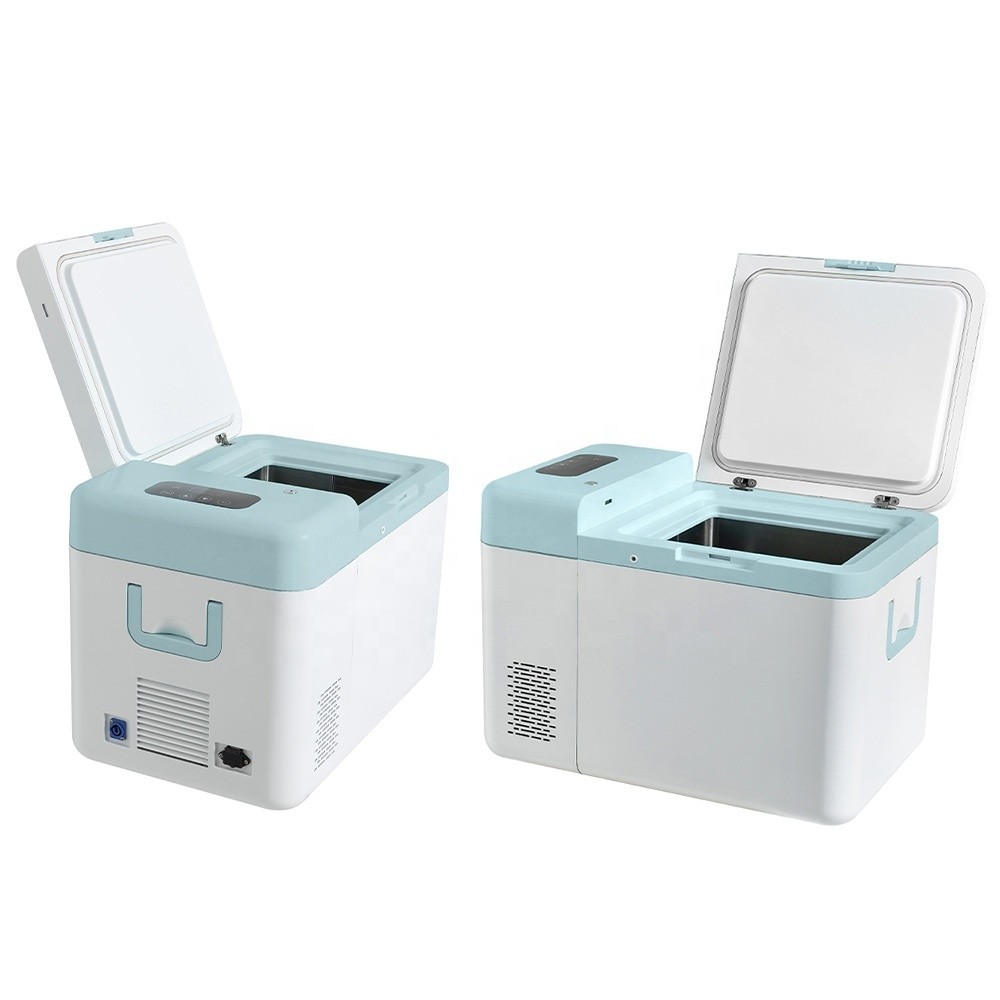

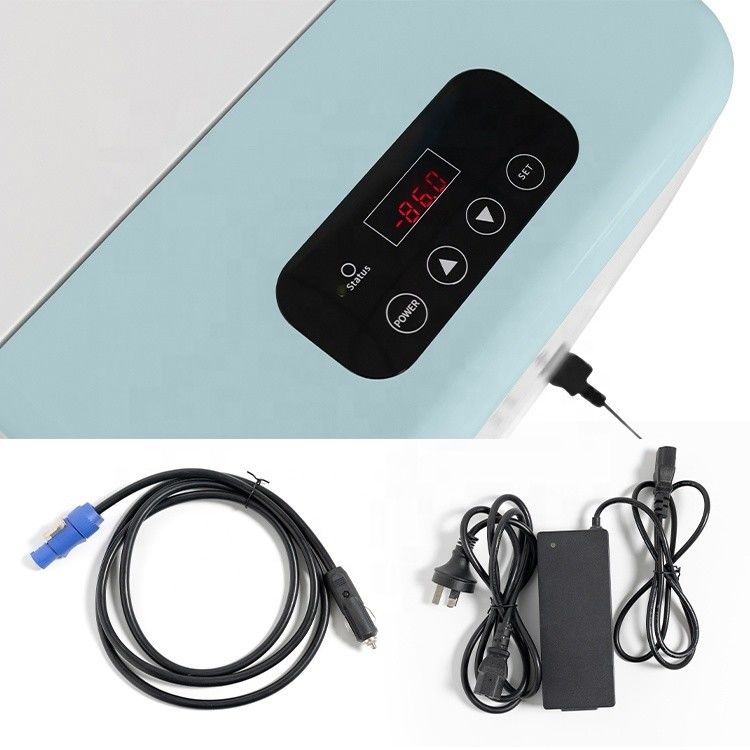

Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 0
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 1
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 2
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 3
Application field

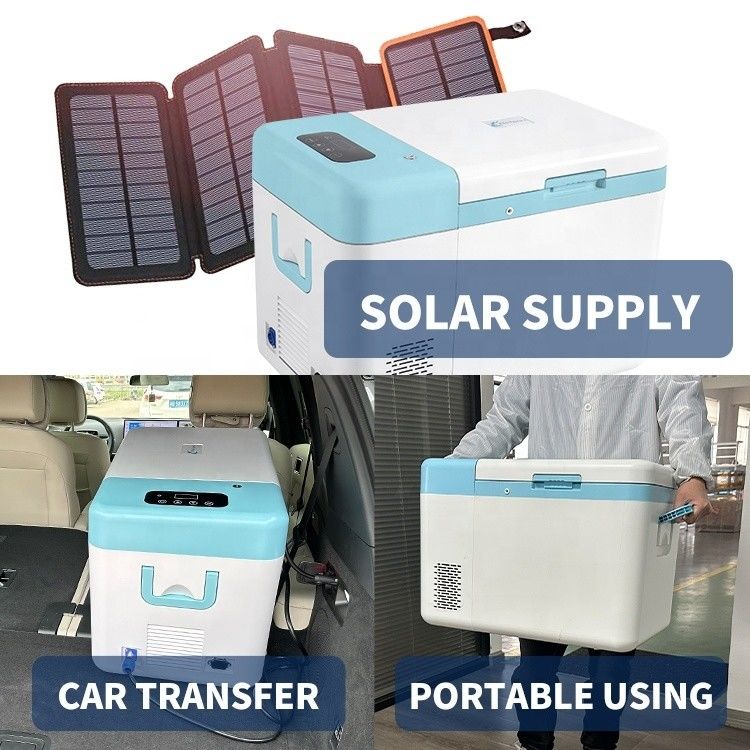

Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 4
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 5
Company Profile
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 6
Certifications
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 7
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 8
Product packaging
Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer 9
FAQ

Q&A

Q1. How long will receive the items?
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.

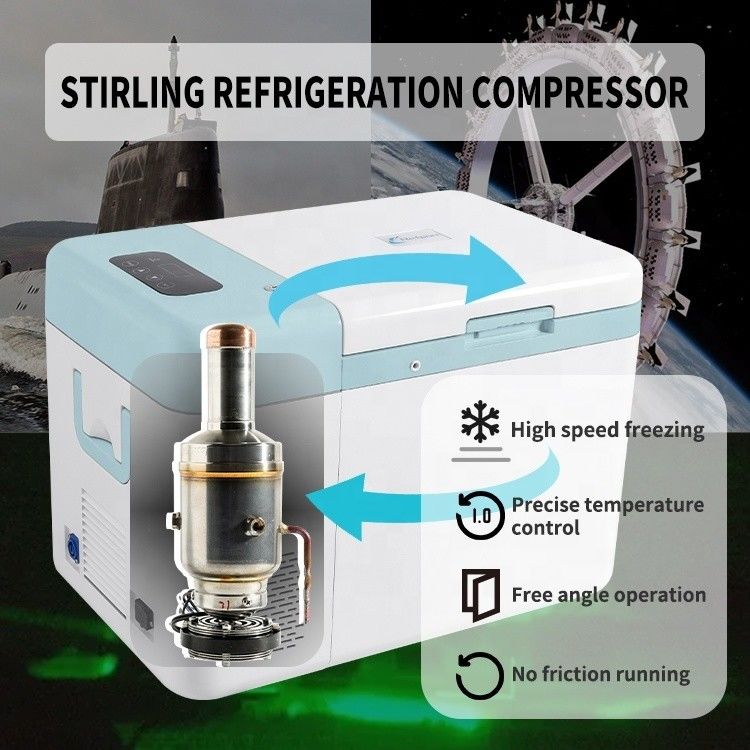

Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
