| Place of Origin: | Chian |
|---|---|
| Brand Name: | Refport |
| Model Number: | DW-8625 |
| Minimum Order Quantity: | 1 piece |
| Price: | $1,580.00/pieces 5-9 pieces |
| Type: | PORTABLE FREEZER | Style: | Single-Temperature |
|---|---|---|---|
| Capacity: | 25L | Temperature: | +25C To -86C |
| Climate Type: | ALL | Refrigerant: | HE |
| Product Name: | Portable Ultra Low Temperature Freezer | Application: | Vaccine |
| Voltage (V): | 110/220V 50/60Hz 12V/24V | Cooling System: | Stirling Cooling System |
| Compressor: | Free Piston Stirling Cooler | Warranty: | 1 Year |
| Temperature Range: | +25C To -86C | Defrost: | Manul |
| Net Weight (KG): | 17.5KG | Temperature Control: | ±1C |
|
Name
|
Portable Ultra Low Temperature Freezer
|
|
|
|
|||
|
Type
|
DW-8625
|
|
|
|
|||
|
Storage Volume
|
25L
|
|
|
|
|||
|
Electric Power
|
100V AC to 240V AC；50Hz,60Hz；12V DC to 24V DC
|
|
|
|
|||
|
Maximum Power
|
100W (0.5A@220V,4.6A@24V)
|
|
|
|
|||
|
Cooling Engine
|

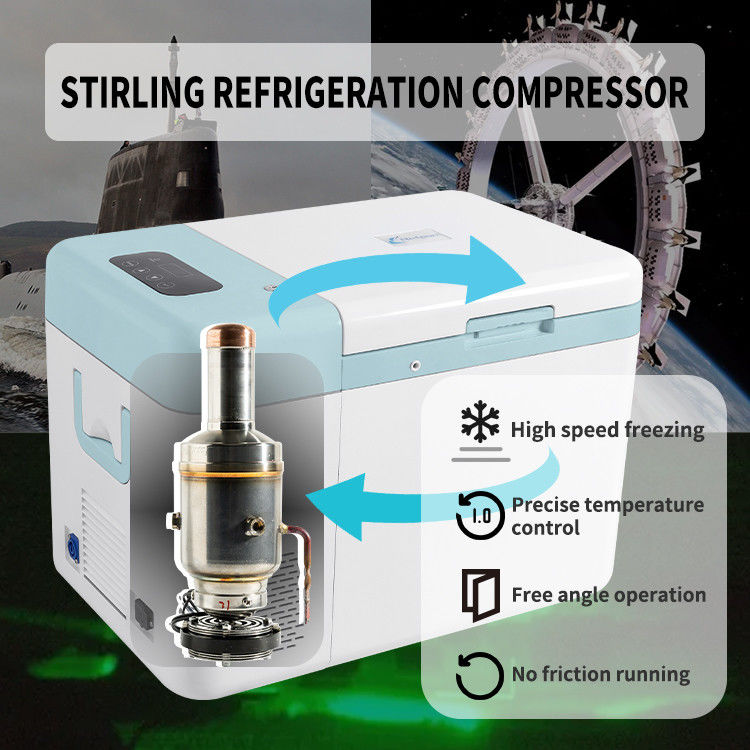

Free-piston Stirling Engine
|
|
|
|
|||
|
Refrigerant
|
Helium (He)
|
|
|
|
|||
|
Heat Transport System
|
Gravity driven thermosiphon
|
|
|
|
|||
|
Temperature Range
|
25℃ to Minus 86℃
|
|
|
|
|||
|
Environmental Conditions
|
Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m
|
|
|
|
|||
|
|
Temperature 5℃ to 35℃,maximum relative humidity 80%
|
|
|
|
|||
|
Performance Data
|
Ambient temperature is 25℃；Empty Cabinet
|
|
|
|
|||
|
|

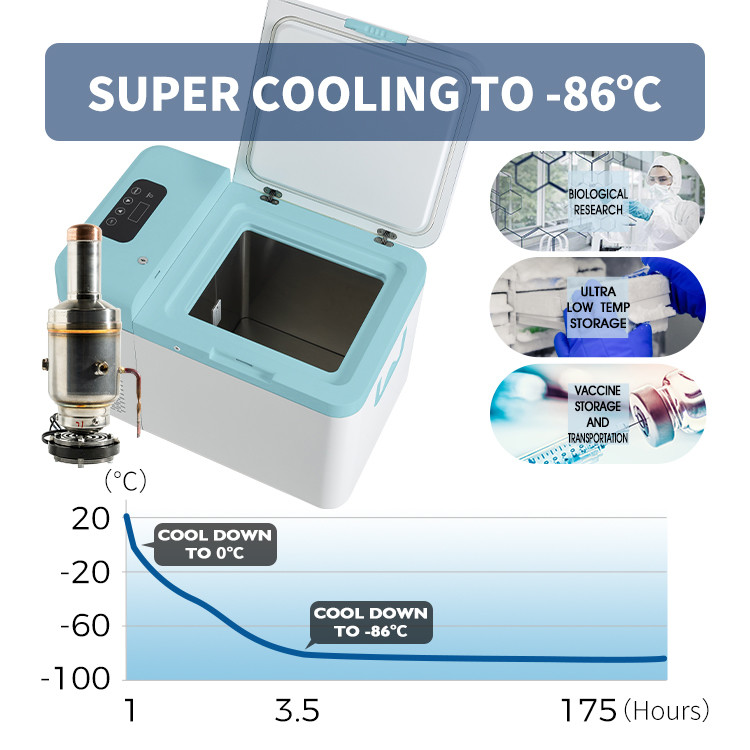

Take 6 hours from 25℃ to -80℃
|
|
|
|
|||
|
Steady State Energy
|
Ambient temperature is 25℃
|
|
|
|
|||
|
|
75W
|
|
|
|
|||
|
Insulation
|
High performance vacuum insulated panels, polyurethane foam
|
|
|
|
|||
|
Noise
|
＜55dB
|
|
|
|
|||
|
Control Sensor
|
One RTD(PT100 Class B),precision±0.3
|
|
|
|
|||
|
Security
|
Lockable lid
|
|
|
|
|||
|
Warm and cold alarms
|
Setpoint ±10℃
|
|
|
|
|||
|
Defrost Method
|
Manual
|
|
|
|
|||
|
Certification
|
CE/EMC,CE/LVD,CQC
|
|
|
|
|||
|
Interior(LxWxD)
|
300*250*300mm
|
|
|
|
|||
|
Exterior(LxWxD)
|
616*392*455mm
|
|
|
|
|||
|
Net Weight, Empty
|
17.5KG
|
|
|
|
|||
|
Shipping(LxWxD)
|
710*472*522mm
|
|
|
|
|||
|
Shipping Weight
|
20KG
|
|
|
|
|||
