| Place of Origin: | China |
|---|---|
| Brand Name: | Refport |
| Model Number: | DM-6025 |
| Minimum Order Quantity: | 1 piece |
| Price: | $860.00/pieces 5-9 pieces |
| Packaging Details: | Carton and Pearl wool;<br>Allow customization |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Features: | Easy Clean | Warranty: | 1 Years |
|---|---|---|---|
| Classification: | Laboratory Refrigeration Equipments | Customized Support: | OEM, ODM, OBM |
| Product Name: | 86 Ultra-low Temperature Freezer | Application: | Biological Materials |
| Refrigeration Type: | Stirling Cooling Technogoly | Temperature Range: | +25C TO -60C |
| Cooling System: | Stirling Cooling System | Weight: | 17.5kg |
| Capacity: | 25L | Voltage: | 220V /110V 50/60HZ 12V/24V |
| Refrigerant: | Helium (He) | Port: | Ningbo Port, Shanghai Port |

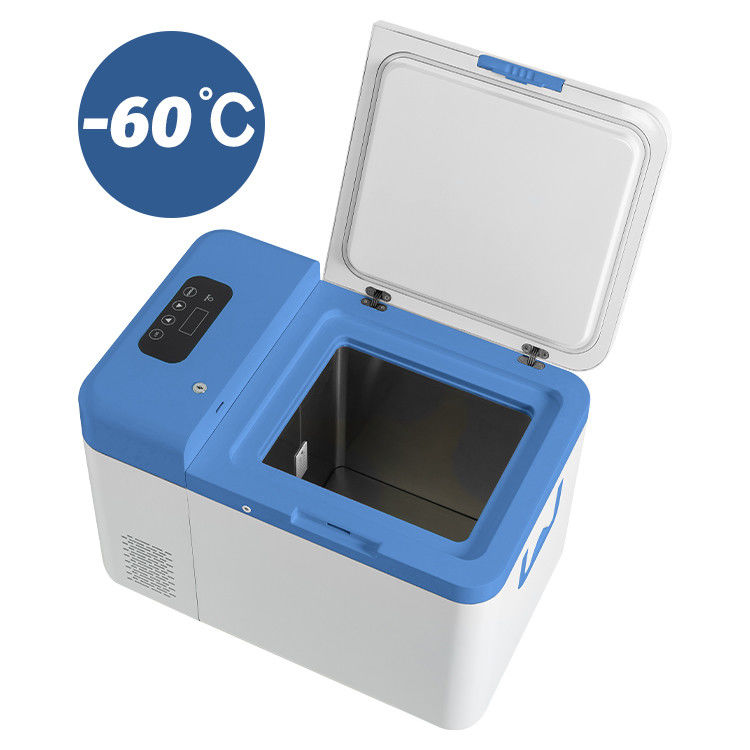

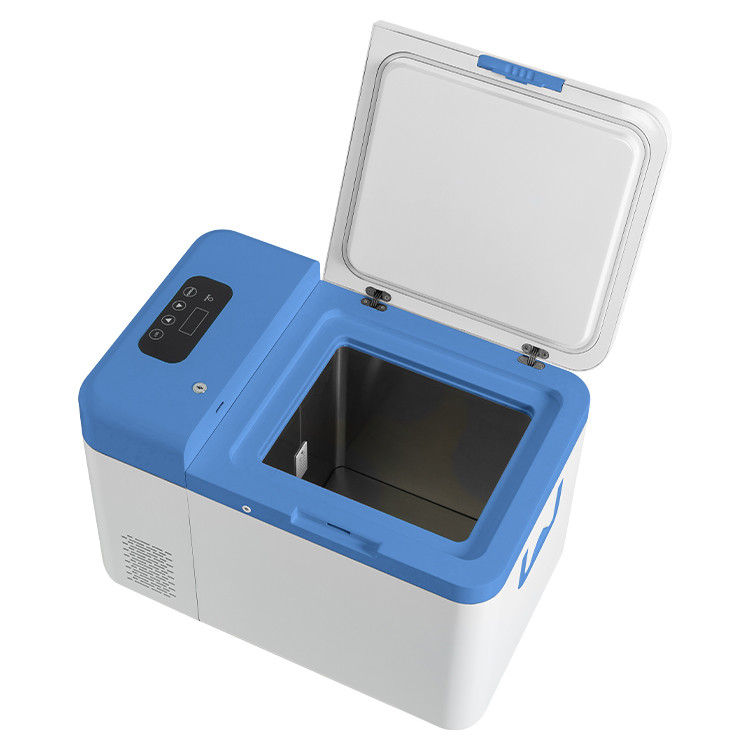

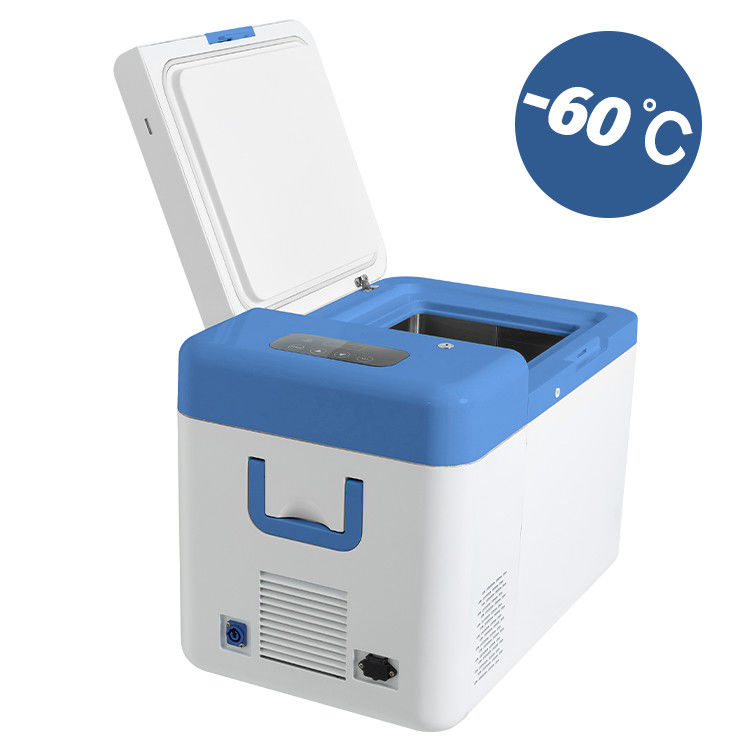

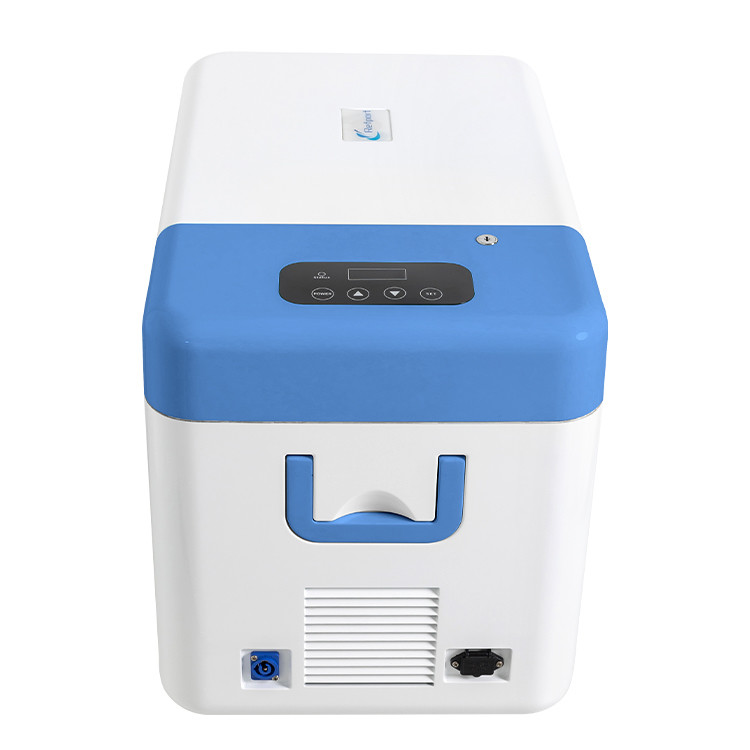

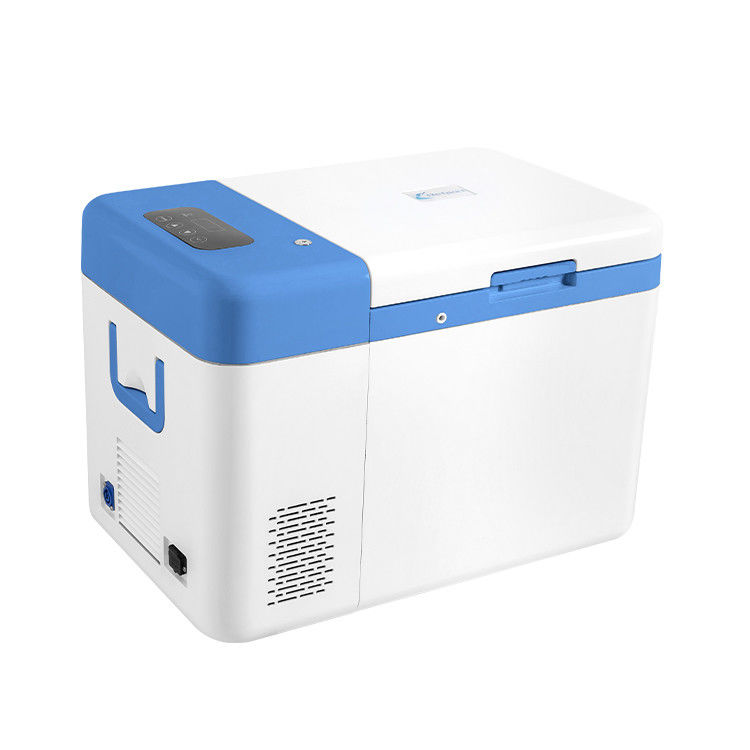

Name | Portable Ultra Low Temperature Freezer |
Type | DM-6025 |
Storage Volume | 25L |
Electric Power | 100V AC to 240V AC；50Hz,60Hz；12V DC to 24V DC |
Maximum Power | 80W (0.5A@220V,4.6A@24V) |
Cooling Engine | Free-piston Stirling Engine |
Refrigerant | Helium (He) |
Heat Transport System | Gravity driven thermosiphon |
Temperature Range | 25℃ to Minus 60℃ |
Environmental Conditions | Non-corrosive, Non-flammable, Non-explosive, Altitude up to 2000m |
Temperature 5℃ to 35℃,maximum relative humidity 80% | |
Performance Data | Ambient temperature is 25℃；Empty Cabinet |
Take 2.5 hours from 25℃ to -60℃ | |
Steady State Energy | Ambient temperature is 25℃ |
60W | |
Insulation | High performance vacuum insulated panels, polyurethane foam |
Noise | ＜55dB |
Control Sensor | One RTD(PT100 Class B),precision±0.3 |
Security | Lockable lid |
Warm and cold alarms | Setpoint ±10℃ |
Defrost Method | Manual |
Certification | CE/EMC、CE/LVD、CQC |
Interior(LxWxD) | 300*250*300mm |
Exterior(LxWxD) | 616*392*455mm |
Net Weight, Empty | 17.5KG |
Shipping(LxWxD) | 969*472*522mm |
Shipping Weight | 20KG |
