Detail Information

Type:	Stirling Cooler	Style:	Single-Temperature
Capacity:	N/A	Temperature:	-130C
Climate Type:	ALL	Refrigerant:	Helium (He)
Product Name:	Free-piston Stirling Engine	Voltage (V):	12V/24V/110V-240V
Cooling System:	Stirling Cooling System	Power (W):	80w
Compressor:	Free-piston Stirling Engine	Temperature Range:	+25C TO -130C
Net Weight (KG):	2.5KG	Warranty:	3 Years
Cooling Method:	Stirling Cooling

Product Description

Specification

Porduct Name	Free-piston Stirling Cooling Engine
Type	JX-80W1
Input Date
Rated input voltage	24V DC
Rated input voltage range	21.6V to 26.4V DC
Rated input current	≤6A
Output Date
Output current range	0 to 9A
Output voltage range	0 to 16V
Output frequency	80.0Hz
Basic Date
Exterior(LxWxD)	165140290mm
Net Weight	3.2KG
Refrigerating capacity	over 30W @ Minus 80 Degree
Top head temperature	Minus 120 Degree
Work temperature	Minus 10 Degree to 32 Degree
Storage temperature	Minus 20 Degree to 60 Degree
Humidity	20% to 90%
Heat dissipation	Air cooling
Noise	≤55dB

Our Advantages

Installation Dimension

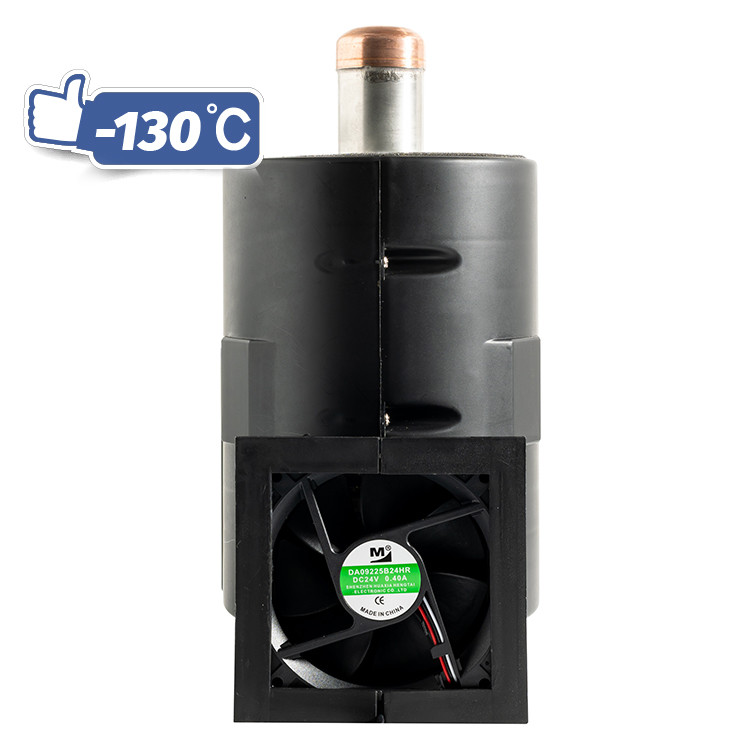

Product Details

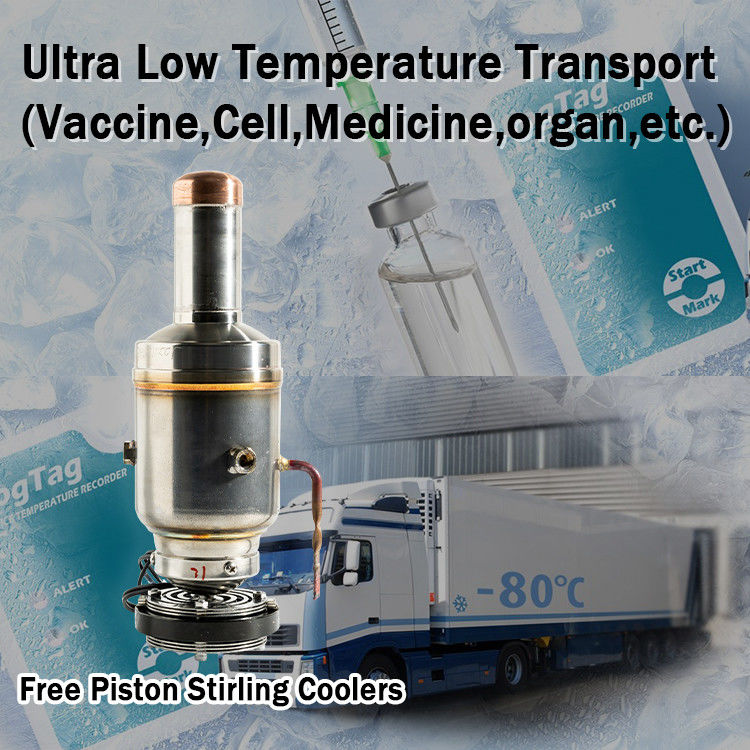

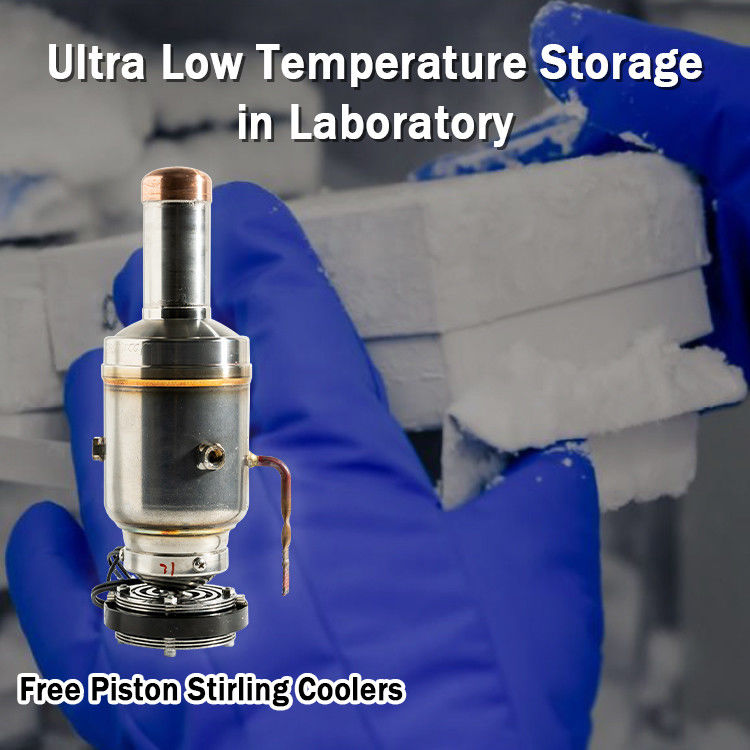

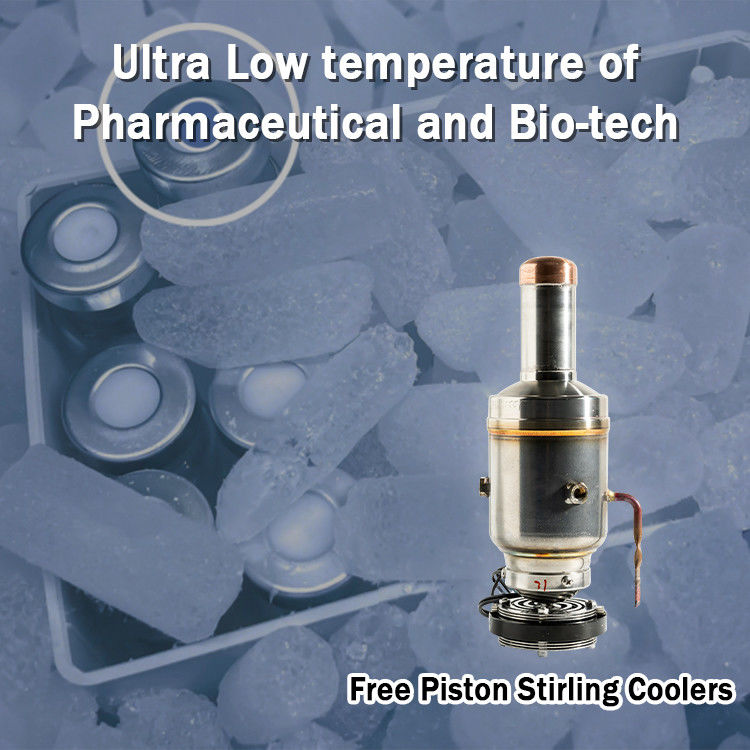

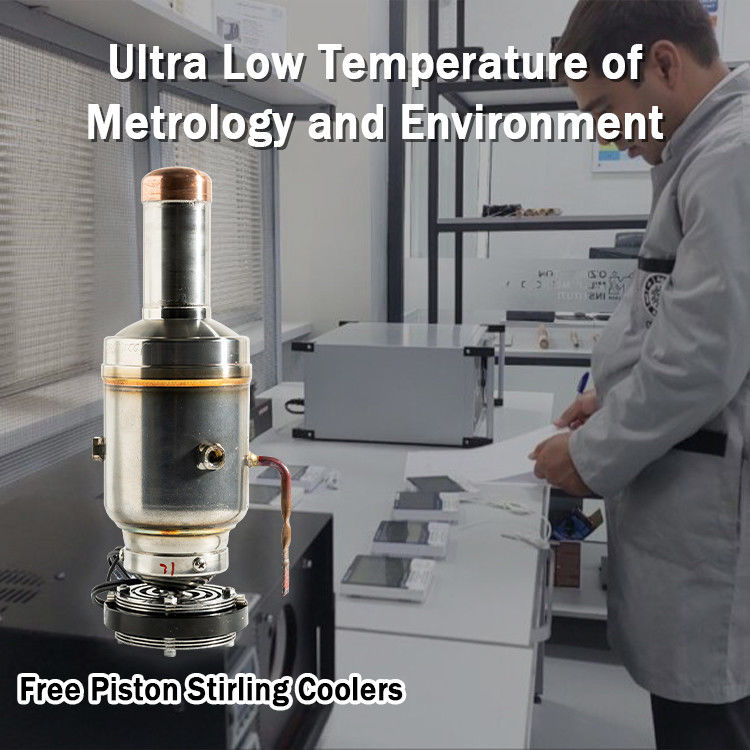

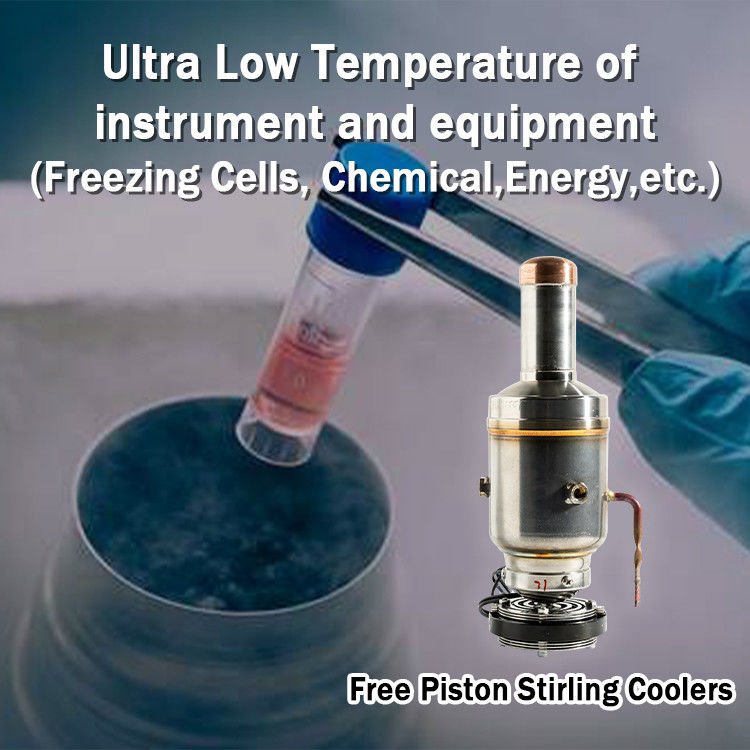

Application field

Product packaging

Company Profile

Certifications

Q&A

Q1. How long will receive the items?
A:Please provide your detail address to us,and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM,Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient

Place of Origin:	Zhejiang, China
Brand Name:	Refport
Certification:	CE/ISO9001
Model Number:	ST-80

Minimum Order Quantity:	1 piece
Price:	$400.00/pieces 1-9 pieces
Packaging Details:	Carton and Pearl wool;<br>Allow customization
