Detail Information

Type:	Free Piston Stirling Cooler	Style:	Single
Capacity:	N	Temperature:	0C To -130C, 0C To 130C
Climate Type:	ALL	Refrigerant:	HE, HE
Product Name:	Free Piston Stirling Cooler	Weight:	3KG
Cooling System:	Stirling Cooling System	Voltage:	100V To 240V 12V/24V
Brand:	Refport	Warranty Time:	3 Years
Temperature Control:	±0.1C	Certificate:	CE/ISO9001

Product Description

Specification

Porduct Name	Free Piston Stirling Cooler
Type	DW-ST80
Input Date
Rated input voltage	24V DC
Rated input voltage range	21.6V to 26.4V DC
Rated input current	≤6A
Output Date
Output current range	0 to 9A
Output voltage range	0 to 16V
Output frequency	80.0Hz
Basic Date
Exterior(LxWxD)	165140290mm
Net Weight	3.2Kg

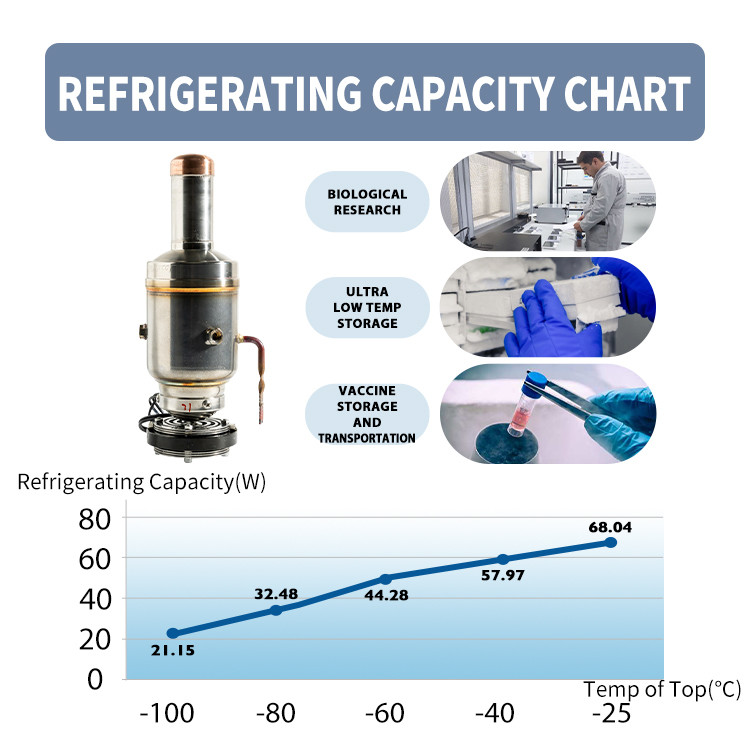

Refrigerating capacity	over 30W @ Minus 80 Degree
Top head temperature	Minus 145 Degree
Work temperature	Minus 10 Degree to 32 Degree
Storage temperature	Minus 20 Degree to 60 Degree
Humidity	20% to 90%
Heat dissipation	Air cooling
Noise	≤55dB

Our Advantages

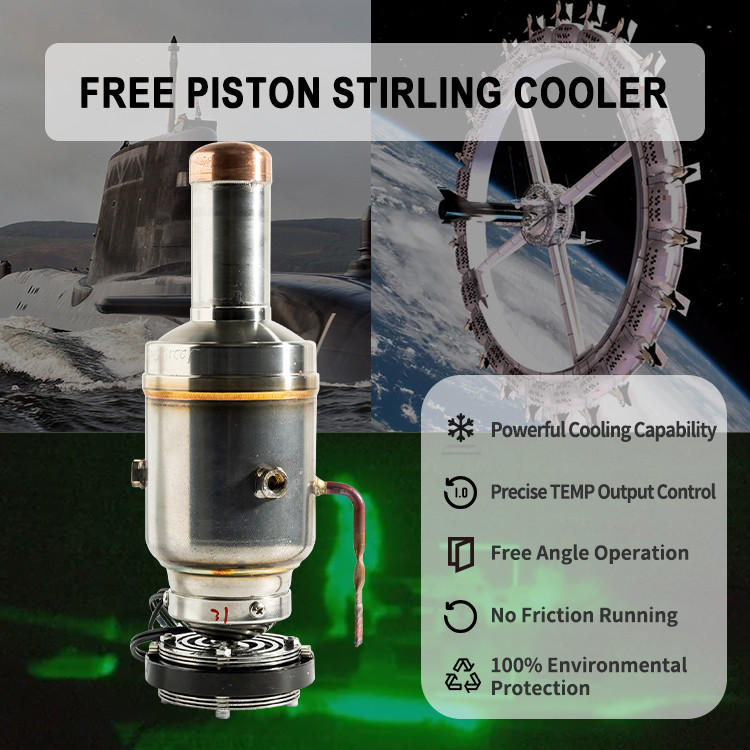

Free Piston Stirling Cooler

Stirling refrigerator does work by the thermal expansion and contraction of gases as they change between hot and cold environments. Compared with traditional refrigeration technology, the advantages of free piston Stirling technology are

High efficiency,

low noise,

low vibration,

Oil-free operation,

long life,

100% natural refrigerants to support sustainable environmentally-friendly operations.

And also Stirling Refrigerator can ignore operating angle, 360° operating is OK. It can precise control refrigerating capacity out freely.

Installation methods

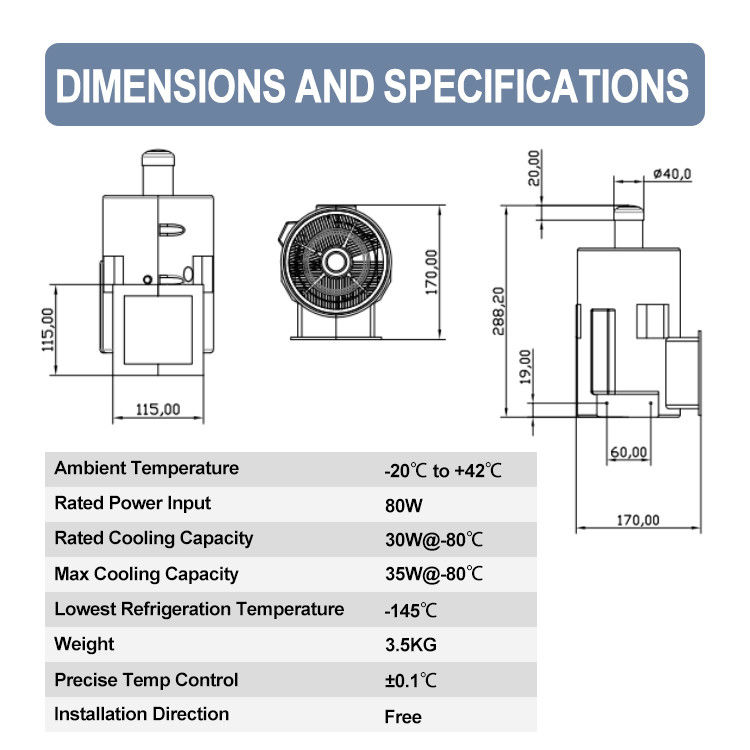

Installation Dimension

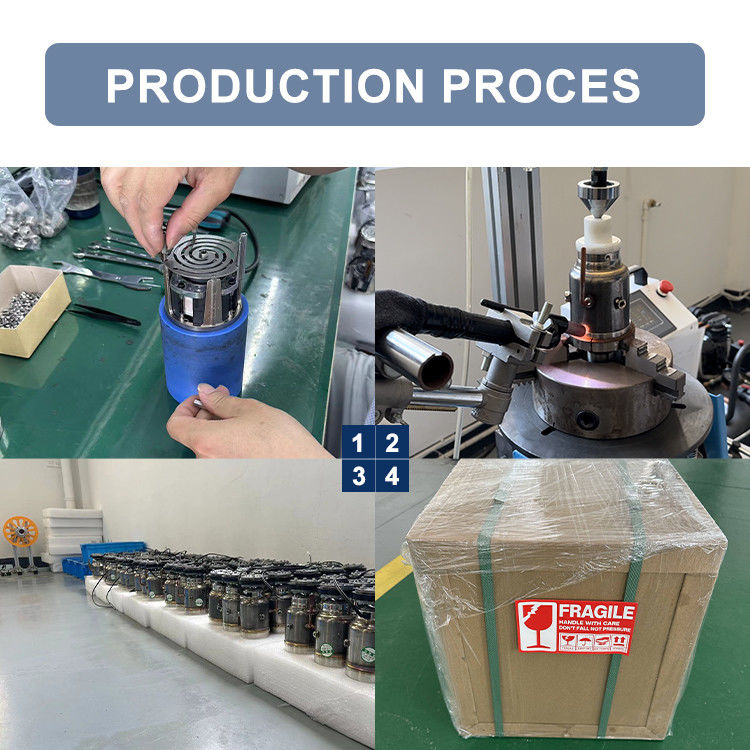

Process Flow

Application field

Company Profile

Ningbo Juxin ULT-Low Temperature Technology Co.,Ltd.

Ningbo Juxin ULT-low Temperature Technology Co., Ltd. Is a technology manufacturing company which focused on R&D manufacturing of Stirling Cooling technology and Portable ultra low temperature freezer. We have professional workmanship, strong researching and developing ability, and advanced technology. We have more then 12 years experience in Stirling Technology and we have mature research and development capability, manufacturing capacity. We also have CE and ISO9001 certification. With the spirit of Integrity, Practicability and Right Effort. We will let the Stirling Cooling Technology to contribute to the world of mankind.

Product packaging

Shipping Available and Trade Terms:

By Express, By Air, By Sea, By Truck, By Rail to Door All is accepted.

Trade Terms: EXW, FCA, FOB, CNF, CIF, CFR, DAP, DDP.

Q&A

Q1. How long will receive the items?
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient

Place of Origin:	Zhejiang, China
Brand Name:	Refport
Model Number:	DW-ST80

Minimum Order Quantity:	1 piece
Price:	$400.00/pieces 2-99 pieces
